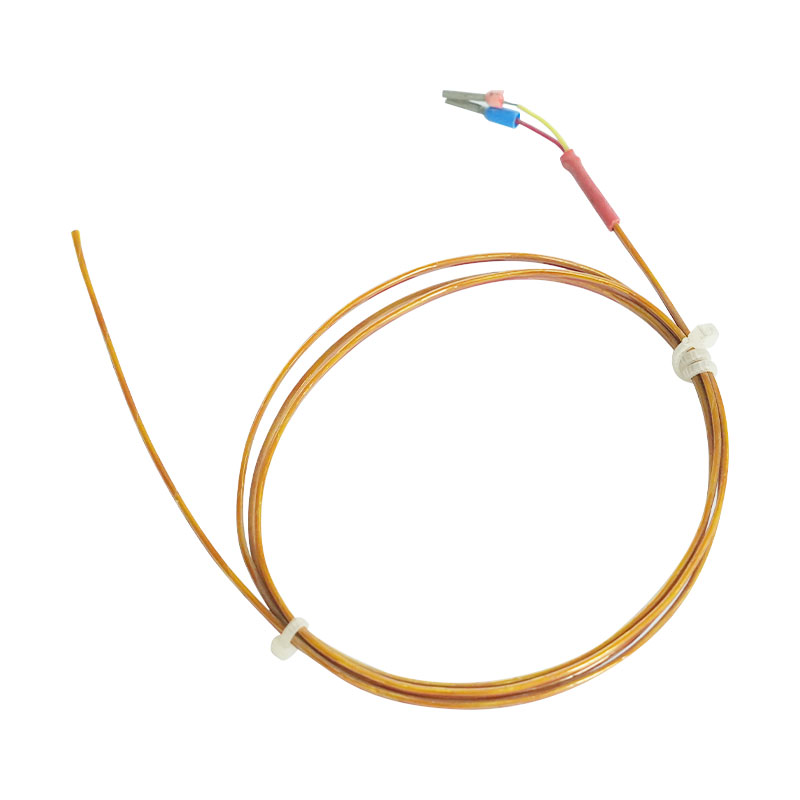

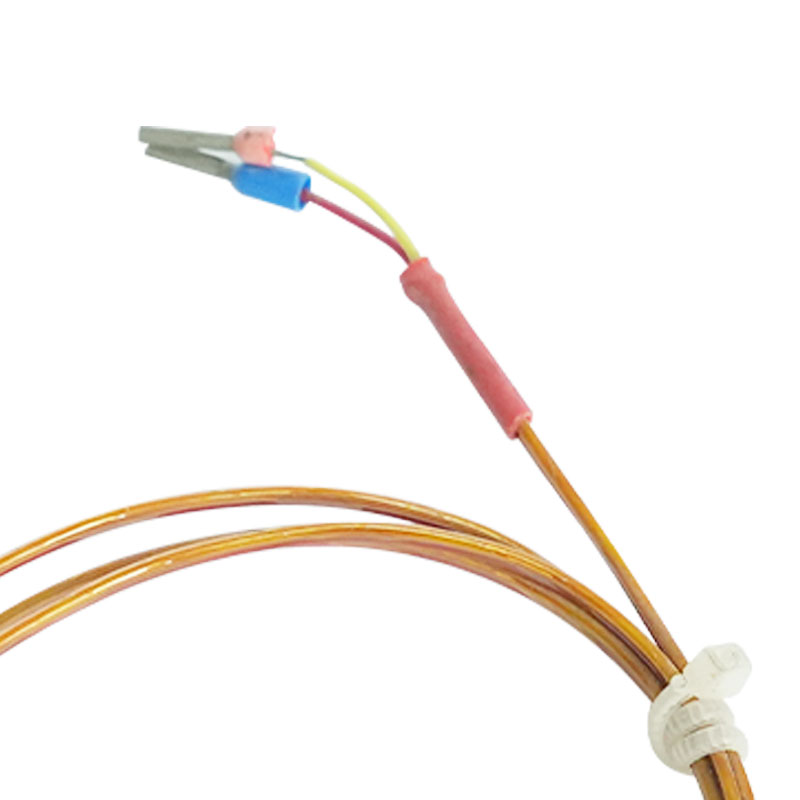

Screw type thermocouple

The screw-type thermocouple can cling to the measured objects well by thread tightening into the surface of an object in order to increase reliability and accuracy. Matched with an indicating instrument, the thermocouple can directly measure the temperature within 0-600℃. Being a flexible conductor, the thermocouple can be bent freely and has the characteristics of short response time convenient usage, etc. It is applicable to industries such as mold, machinery, metal products, etc.

Get A Quote

PREV：Pressure spring fixed thermocouple NEXT：Small type thermocouple

Parameter
Contact Us

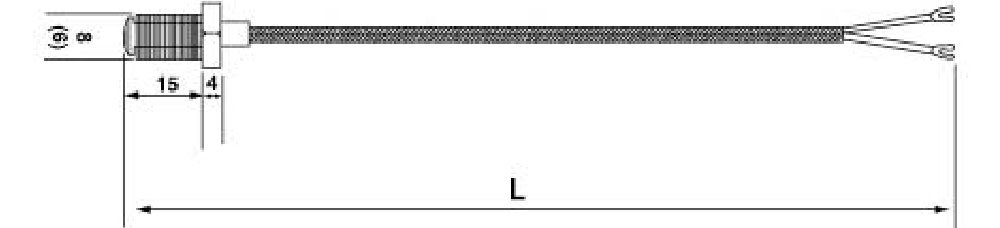

Model	Graduation Mark	Measuring Range(℃)	Thermal Response Time t 0.5(s)	Proteclion Tube Matenial	Specification		Connecting bolt
					Overall length(mm)	Protection label,(mm)
WRNT-08	K	0-600	≤15	1Cr18Ni9Ti	1000 1500 2000 2500 3000 3500 4000	10-15	M6 or M8
WRET-03	E	0-400
