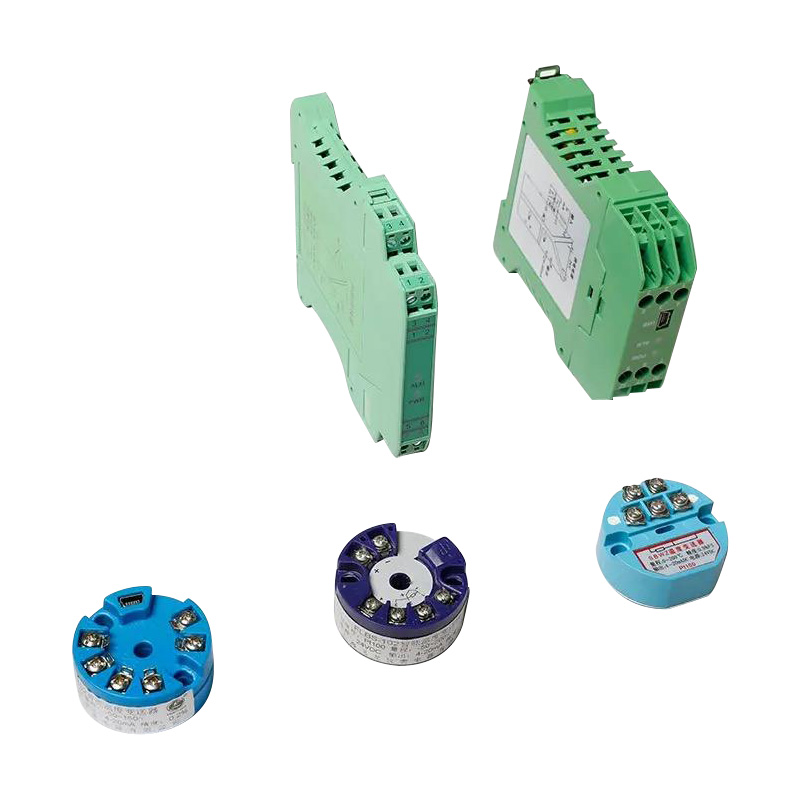

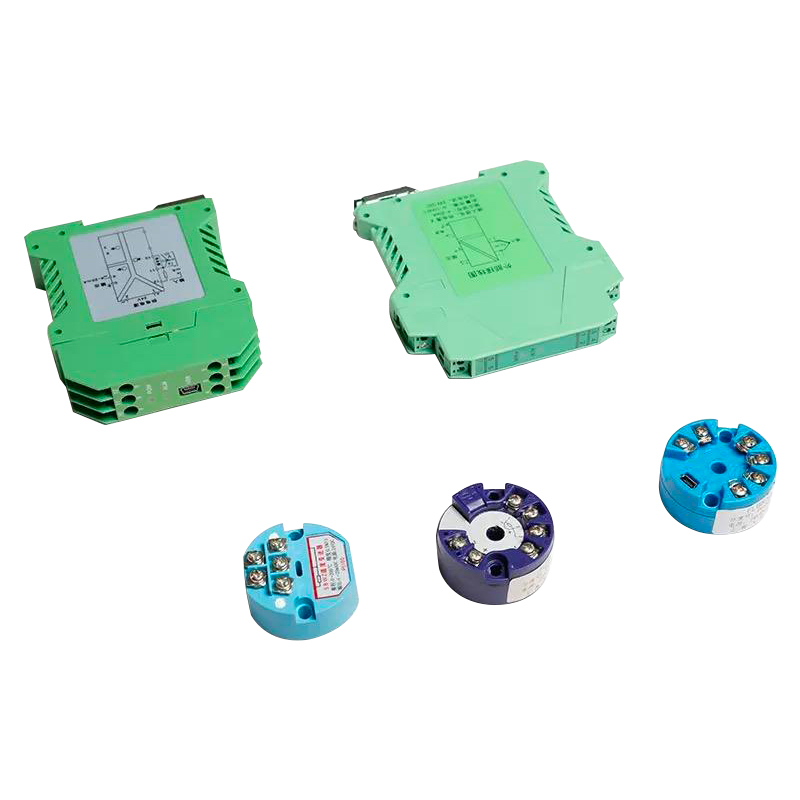

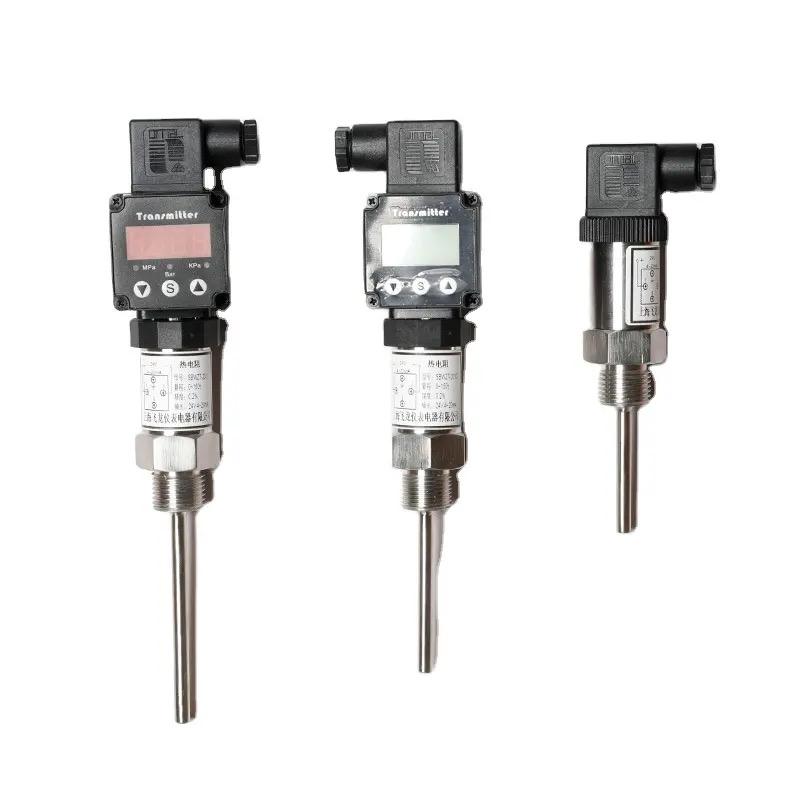

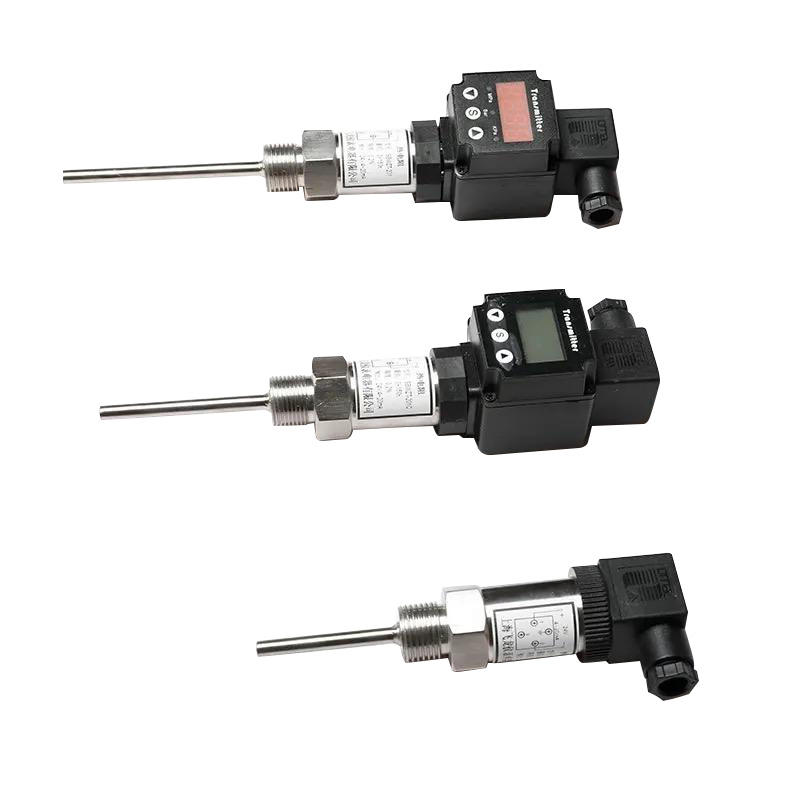

Integrated temperature transmitter

The integrated structural thermocouple and thermal resistance products with the function of temperature measurement and transmission can be realized by putting the two-wire system modules of a transmitter (SBWRand SBWZ) into the connection box of the thermocouple and thermal resistance products,such as normal packaged type, explosion proof type and sheathed type, The integration production can be used to measure the temperature of liquid,gas or steam medium directly.It receives the input signals of the thermocouple and thermal resistance with standard graduation mark and generates the linear 4~20mA DC by the measured temperature. The temperatures are measured and controlled by the contact of the DC output signal and computer system. This temperature transmitter can be widely used to the scientific research field of the industrial sectors,such as electric power, metallurgy, petroleum, chemical engineering, aviation,mechanics, light industry, textile,medicine, food and national defense.

Get A Quote

Output signal	4-20mA DC signal linear with temperature within the range
Basic accuracy	Thermocouple temperature transmitter±0.5%FS; Thermal resistance temperature transmitter ±0.2%FS;
Transmission mode	two-wire system
DC power supply	12-30V DC. rated voltage 24V DC
Load impedance	Limit load of load resistance calculated; RL(max)=50(U-12) In the formula, the transmitter is a DC power voltage Under 24V rated voltage: RL(max)=50(24-12)=600Ω
Normal operating environments	a.Ambient temperature: - 25℃~85℃ ( special requirement - 40℃~90℃ ) b. Relative humidity: 5%-95% c.Mechanical vibration: 10-150HZ. A=0.15mm d. No medium caused corrosion to the transmitter in the ambient air.
Electromagnet interference	When the radio transmitter of 20-1000MHz and 5W 0.5 meters away from the transmitter works.lt shall vary ± 0.15%FS.
Temperature drift	When the environment temperature varies by 1℃, the zero point varies ±0.15% FS and the measuring rang changes ± 0.01 %FS

Use and wiring

1. Notice to wiring: Please note that the temperature-sensing element has been well connected and the measurement range before leaving the factory, Generally, please do not adjust the range adjustment potentiometer, unless it is necessary.

2. For the installation of integrated TC and RTD, please refer to other operation instructions for the same types of TC and RTD.

3. Integrated TC and RTD are provided with a two-wire system current output, so only two copper conductors shall be required.

Example for order

Please indicate the model, graduation mark, total length and inserted depth in order,i.e.(L×I)

Example1:WRNKB-230 K 1150x1000

I.E: Two wire system integrated sheathed thermocouple, fixed bolt installation, waterproof connection box, outer diameter Φ16mm, graduation mark K, overall length 1150, inserted depth 1000mm.

Example 2: WZPKB-336 Pt100 L=1000

I.E: Two-wire system integrated sheathed platinum thermal resistance, movable ferrule bolt installation, waterproof connection box, outer diameter, graduation mark Pt100, overall length 1000mm.

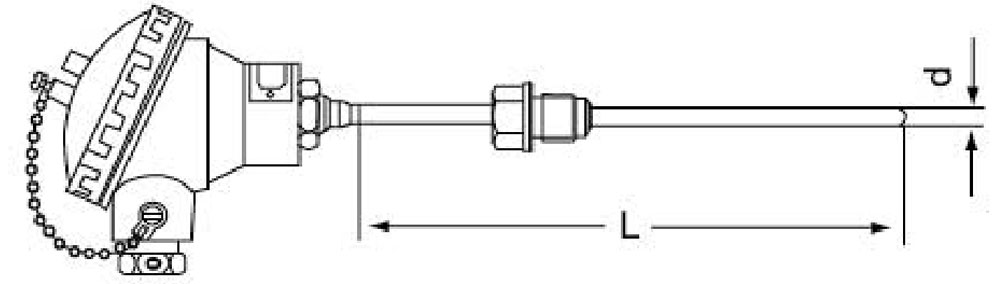

Thermocouple and thermal resistance with temperature transmitter

Model	Graduation Mark	Measuring Range(℃)	Casing tube
Model	Graduation Mark	Measuring Range(℃)	Material	Tube dia.	Spec.
SBWZPR-231	Pt100	-50-+400	1Cr18Ni9Ti、316	Φ6-12	300×150 400×250 450×300 500×350
SBWRNR-231	R	0-1000	1Cr18NiSTi、GH2520、316	Φ6-12	300×150 400×250 450×300 500×350

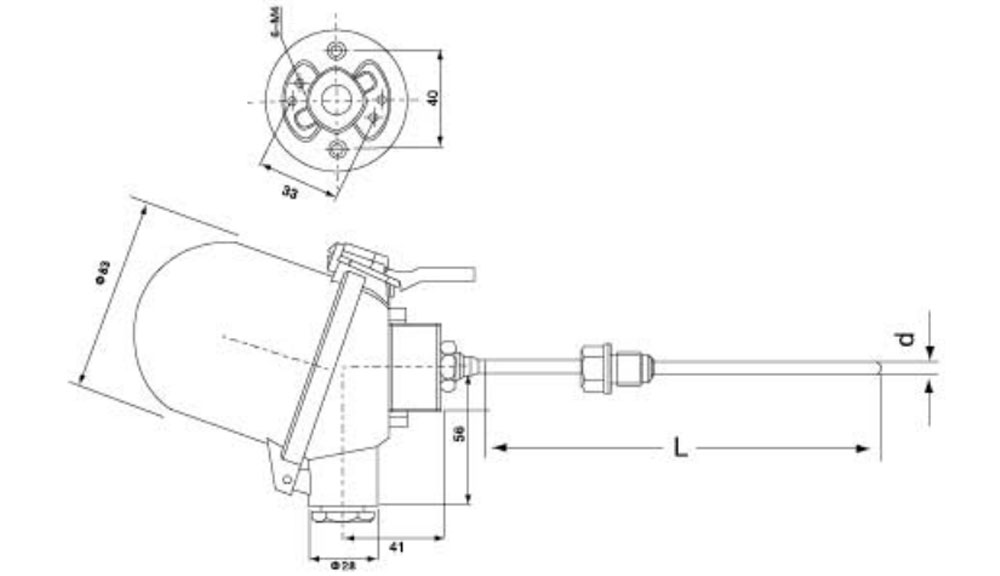

Model	Graduation Mark	Measuring Range(℃)	Casing tube
Model	Graduation Mark	Measuring Range(℃)	Matenial	Tube dia.	Spec.
SBWZPK2-231	Pt100	-50-+400	1Cr18Ni9Ti、316	Φ6-12	550×400 600×450 650×500 700×550 750×600 800×650 1000×850 1150×1000 1350×1200
SBWRNR2-231	R	0-1000	1Cr18Ni9Ti、GH2520、316	Φ6-12

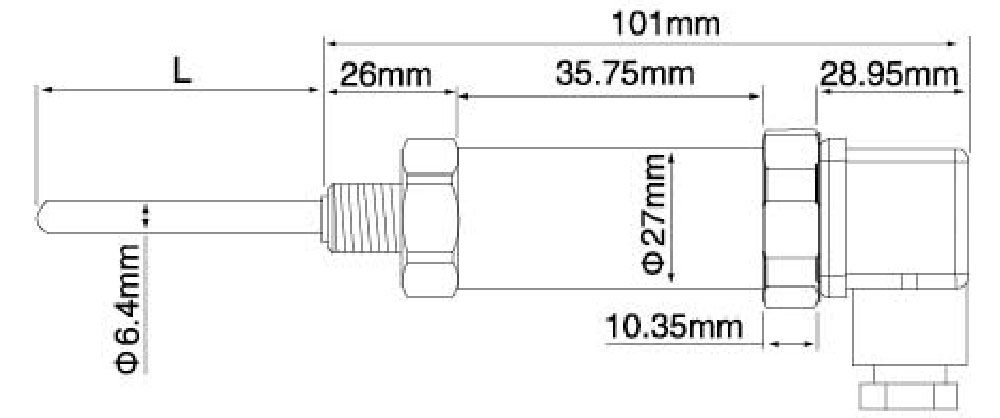

Hirschmann plug-in type small thermal resistance and thermocouple

Model	Graduation Mark	Measuring Range(℃)	Casing tube
Model	Graduation Mark	Measuring Range(℃)	Matenial	Tube dia.	Spec.
SBWET-201	Pt100	-50-+400	1Cr18Ni9Ti、316	Φ4-12	50 100 150 200 300 400 500
SBWET-200	R	0-800	1Cr18Ni9Ti、GH2520、316	Φ4-12	50 100 150 200 300 400 500
